Federal Radiological Emergency Response Plan (FRERP)--Operational Plan



Section Contents




Publication Information




[ Next | Top of file ]

Published Date: May 1, 1996

This plan, signed by FEMA Director James L. Witt on May 1, 1996, was originally published in the Federal Register as a Notice, dated May 8, 1996, Part III, pp. 20944-20970. A subsequent Correction to Notice, dated June 5, 1996, pp. 28583-28584, included the two figures appearing on Page II-19 that were inadvertently omitted in the original Notice.




Figures




[ Prev | Next | Top of file ]

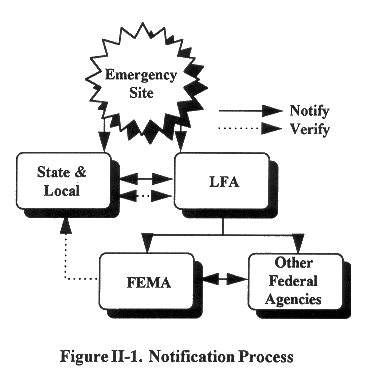

Figure II-1. Notification Process.

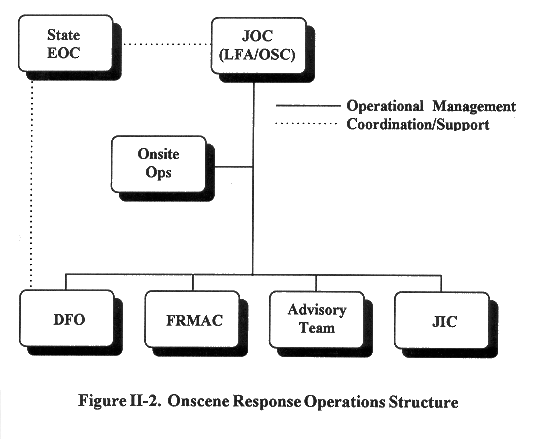

Figure II-2. Onscene Response Operations Structure.






I. Introduction and Background




[ Prev | Next | Top of file ]


A. Introduction




[ Prev | Next | Top of file ]

The objective of the Federal Radiological Emergency Response Plan (FRERP) is to establish an organized and integrated capability for timely, coordinated response by Federal agencies to peacetime radiological emergencies.

The FRERP:

  1. Provides the Federal Government's concept of operations based on specific authorities for responding to radiological emergencies
  2. Outlines Federal policies and planning considerations on which the concept of operations of this Plan and Federal agency specific response plans are based and
  3. Specifies authorities and responsibilities of each Federal agency that may have a significant role in such emergencies.

There are two Sections in this Plan. Section I contains background, considerations, and scope. Section II describes the concept of operations for response.


B. Participating Federal Agencies




[ Prev | Next | Top of file ]

Each participating agency has responsibilities and/or capabilities that pertain to various types of radiological emergencies. The following Federal agencies participate in the FRERP:

  1. Department of Agriculture (USDA)
  2. Department of Commerce (DOC)
  3. Department of Defense (DOD)
  4. Department of Energy (DOE)
  5. Department of Health and Human Services (HHS)
  6. Department of Housing and Urban Development (HUD)
  7. Department of the Interior (DOI)
  8. Department of Justice (DOJ)
  9. Department of State (DOS)
  10. Department of Transportation (DOT)
  11. Department of Veterans Affairs (VA)
  12. Environmental Protection Agency (EPA)
  13. Federal Emergency Management Agency (FEMA)
  14. General Services Administration (GSA)
  15. National Aeronautics and Space Administration (NASA)
  16. National Communications System (NCS) and
  17. Nuclear Regulatory Commission (NRC).


C. Scope




[ Prev | Next | Top of file  ]

The FRERP covers any peacetime radiological emergency that has actual, potential, or perceived radiological consequences within the United States, its Territories, possessions, or territorial waters and that could require a response by the Federal Government. The level of the Federal response to a specific emergency will be based on the type and/or amount of radioactive material involved, the location of the emergency, the impact on or the potential for impact on the public and environment, and the size of the affected area. Emergencies occurring at fixed nuclear facilities or during the transportation of radioactive materials, including nuclear weapons, fall within the scope of the Plan regardless of whether the facility or radioactive materials are publicly or privately owned, Federally regulated, regulated by an Agreement State, or not regulated at all. (Under the Atomic Energy Act of 1954 [Subsection 274.b.], the NRC has relinquished to certain States its regulatory authority for licensing the use of source, byproduct, and small quantities of special nuclear material.)


D. Plan Considerations




[ Prev | Next | Top of file  ]

1. Public and Private Sector Response

For an emergency at a fixed nuclear facility or a facility not under the control of a Federal agency, State and local governments have primary responsibility for determining and implementing measures to protect life, property, and the environment in areas outside the facility boundaries. The owner or operator of a nuclear facility has primary responsibility for actions within the boundaries of that facility, for providing notification and advice to offsite officials, and for minimizing the radiological hazard to the public.

For emergencies involving an area under Federal control, the responsibility for onsite actions belongs to a Federal agency, while offsite actions are the responsibility of the State or local government.

For all other emergencies, the State or local government has the responsibility for taking emergency actions both onsite and offsite, with support provided, upon request, by Federal agencies as designated in Section II of this plan.

2. Coordination by Federal Agencies

This Plan describes how the Federal response to a radiological emergency will be organized. It includes guidelines for notification of Federal agencies and States, coordination and leadership of Federal response activities onscene, and coordination of Federal public information activities and Congressional relations by Federal agencies. The Plan suggests ways in which the State, local, and Federal agencies can most effectively integrate their actions. The degree to which the Federal response is merged or to which activities are adjusted will be based upon the requirements and priorities set by the State.

Appropriate independent emergency actions may be taken by the participating Federal agencies within the limits of their own statutory authority to protect the public, minimize immediate hazards, and gather information about the emergency that might be lost by delay.

3. Federal Agency Authorities

Some Federal agencies have authority to respond to certain situations affecting public health and safety with or without a State request. Appendix C of this Plan cites relevant legislative and executive authorities. This Plan does not create any new authorities nor change any existing ones.

A response to radiological emergencies on or affecting Federal lands not occupied by a government agency should be coordinated with the agency responsible for managing that land to ensure that response activities are consistent with Federal statutes governing the use and occupancy of these lands. This coordination is necessary in the case of Indian tribal lands because Federally recognized Indian tribes have a special relationship with the U.S. Government, and the State and local governments may have limited or no authority on their reservations.

In the event of an offsite radiological accident involving a nuclear weapon, special nuclear material, classified components, or all three, the owner (either DOD, DOE, or NASA) will declare a National Defense Area (NDA) or National Security Area (NSA), respectively, and this area will become "onsite" for the purposes of this plan. NDAs and NSAs are established to safeguard classified information, and/or restricted data, or equipment and material. Establishment of these areas places non-Federal lands under Federal control and results only from an emergency event. It is possible that radioactive contamination would extend beyond the boundaries of these areas.

In accordance with appropriate national security classification directives, information may be classified concerning nuclear weapons, special nuclear materials at reactors, and certain fuel cycle facilities producing military fuel.

4. Federal Agency Resource Commitments

Agencies committing resources under this Plan do so with the understanding that the duration of the commitment will depend on the nature and extent of the emergency and the State and local resources available. Should another emergency occur that is more serious or of higher priority (such as one that may jeopardize national security), Federal agencies will reassess resources committed under this Plan.

5. Requests for Federal Assistance

State and local government requests for assistance, as well as those from owners and operators of radiological facilities or activities, may be made directly to the Federal agencies listed in Table II-1, FEMA, or to other Federal agencies with whom they have preexisting arrangements or relationships.

6. Reimbursement

The cost of each Federal agency's participation in support of the FRERP is the responsibility of that agency, unless other agreements or reimbursement mechanisms exist. GSA will be reimbursed for supplies and services provided under this Plan in accordance with prior interagency agreements.


E. Training and Exercises




[ Prev | Next | Top of file ]

Federal agencies, in conjunction with State and local governments, will periodically exercise the FRERP. Each agency will coordinate its exercises with the Federal Radiological Preparedness Coordinating Committee's (FRPCC's) Subcommittee on Federal Response to avoid duplication and to invite participation by other Federal agencies.

Federal agencies will assist other Federal agencies and State and local governments with planning and training activities designed to improve response capabilities. Each agency should coordinate its training programs with the FRPCC's Subcommittee on Training to avoid duplication and to make its training available to other agencies.


F. Relationship to the Federal Response Plan (FRP)




[ Prev | Next | Top of file ]

1. Without a Stafford Act Declaration

Federal agencies will respond to radiological emergencies using the FRERP, each agency in accordance with existing statutory authorities and funding resources. The LFA has responsibility for coordination of the overall Federal response to the emergency. FEMA is responsible for coordinating non-radiological support using the structure of the Federal Response Plan (FRP).

2. With a Stafford Act Declaration

When a major disaster or emergency is declared under the Stafford Act and an associated radiological emergency exists, the functions and responsibilities of the FRERP remain the same. The LFA coordinates the management of the radiological response with the Federal Coordinating Officer (FCO). Although the direction of the radiological response remains the same with the LFA, the FCO has the overall responsibility for the coordination of Federal assistance in support of State and local governments using the FRP.


G. Authorities




[ Prev | Next | Top of file  ]

The following authorities are the basis for the development of this Plan:

1. Nuclear Regulatory Commission Authorization, Public Law 96-295, June 30, 1980, Section 304. This authorization requires the President to prepare and publish a "National Contingency Plan" (subsequently renamed the FRERP) to provide for expeditious, efficient, and coordinated action by appropriate Federal agencies to protect the public health and safety in case of accidents at commercial nuclear power plants.

2. Executive Order (E.O.) 12241, National Contingency Plan, September 29, 1980. This E.O. delegates to the Director of FEMA the responsibility for publishing the National Contingency Plan (i.e., the FRERP) for accidents at nuclear power facilities and requires that it be published from time to time in the Federal Register. Executive Order 12241 has been amended by Executive Order 12657, FEMA Assistance in Emergency Preparedness Planning at Commercial Nuclear Power Plants.

Authorities for the activities of individual Federal agencies appear in Appendix C.


II. Concept of Operations




[ Prev | Next | Top of file  ]


A. Introduction




[ Prev | Next | Top of file ]

The concept of operations for a response provides for the designation of one agency as the Lead Federal Agency (LFA) and for the establishment of onscene, interagency response centers. The FRERP describes both the responsibilities of the LFA and other Federal agencies that may be involved and the functions of each of the onscene centers.

The concept of operations recognizes the preeminent role of State and local governments for determining and implementing any measures to protect life, property, and the environment in areas not under the control of a Federal agency.


B. Determination of Lead Federal Agency (LFA)




[ Prev | Next | Top of file ]

The agency that is responsible for leading and coordinating all aspects of the Federal response is referred to as the LFA and is determined by the type of emergency. In situations where a Federal agency owns, authorizes, regulates, or is otherwise deemed responsible for the facility or radiological activity causing the emergency and has authority to conduct and manage Federal actions onsite, that agency normally will be the LFA.

The following identifies the LFA for each specified type of radiological emergency.

1. Nuclear Facility

a. Licensed by Nuclear Regulatory Commission (NRC) or an Agreement State

The NRC is the LFA for an emergency that occurs at a fixed facility or regarding an activity licensed by the NRC or an Agreement State. These include, but are not limited to, commercial nuclear power reactors, fuel cycle facilities, DOE-owned gaseous diffusion facilities that are operating under NRC regulatory oversight, and radiopharmaceutical manufacturers.

b. Owned or Operated by DOD or DOE

The LFA is either DOD or DOE, depending on which agency owns or authorizes operation of the facility. These emergencies may involve reactor operations, nuclear material and weapons production, radioactive material from nuclear weapons, or other radiological activities.

c. Not Licensed, Owned, or Operated by a Federal Agency or an Agreement State

The EPA is the LFA for an emergency that occurs at a facility not licensed, owned, or operated by a Federal agency or an Agreement State. These include facilities that possess, handle, store, or process radium or accelerator-produced radioactive materials.

2. Transportation of Radioactive Materials

a. Shipment of Materials Licensed by NRC or an Agreement State

The NRC is the LFA for an emergency that involves radiological material licensed by the NRC or an Agreement State.

b. Materials Shipped by or for DOD or DOE

The LFA is either DOD or DOE depending on which of these agencies has custody of the material at the time of the accident.

c. Shipment of Materials Not Licensed or Owned by a Federal Agency or an Agreement State

The EPA is the LFA for an emergency that involves radiological material not licensed or owned by a Federal agency or an Agreement State.

3. Satellites Containing Radioactive Materials

NASA is the LFA for NASA spacecraft missions. DOD is the LFA for DOD spacecraft missions. DOE and EPA provide technical assistance to DOD and NASA.

In the event of an emergency involving a joint U.S. Government and foreign government spacecraft venture containing radioactive sources and/or classified components, the LFA will be DOD or NASA, as appropriate. A joint U.S./foreign venture is defined as an activity in which the U.S. Government has an ongoing interest in the successful completion of the mission and is intimately involved in mission operations. A joint venture is not created by simply selling or supplying material to a foreign country for use in their spacecraft. DOE and EPA will provide technical support and assistance to the LFA.

4. Impact from Foreign or Unknown Source

The EPA is the LFA for an emergency that involves radioactive material from a foreign or unknown source that has actual, potential, or perceived radiological consequences in the United States, its Territories, possessions, or territorial waters. The foreign or unknown source may be a reactor (e.g., Chernobyl), a spacecraft containing radioactive material, radioactive fallout from atmospheric testing of nuclear devices, imported radioactively contaminated material, or a shipment of foreign-owned radioactive material. Unknown sources of radioactive material refers to that material whose origin and/or radiological nature is not yet established. These types of sources include contaminated scrap metal or abandoned radioactive material. DOD, DOE, NASA, and NRC provide technical assistance to EPA.

5. Other Types of Emergencies

In the event of an unforeseen type of emergency not specifically described in this Plan or a situation where conditions exist involving overlapping responsibility that could cause confusion regarding LFA role and responsibilities, DOD, DOE, EPA, NASA, and NRC will confer upon receipt of notification of the emergency to determine which agency is the LFA.

Table II-1.-Identification of Lead Federal Agency for Radiological Emergencies
Type of emergencyLead Federal agency
1. Nuclear Facility:
  a. Licensed by NRC or an Agreement StateNRC
b. Owned or Operated by DOD or DOEDOD or DOE
c. Not Licensed, Owned, or Operated by a Federal Agency or an Agreement StateEPA
2. Transportation of Radioactive Materials:
  a. Shipment of Materials Licensed by NRC or an NRC. Agreement StateNRC
b. Materials Shipped by or for DOD or DOEDOD or DOE
c. Shipment of Materials Not Licensed or Owned by a Federal Agency or an Agreement StateEPA
3. Satellites Containing Radioactive MaterialsNASA or DOD
4. Impact from Foreign or Unknown SourceEPA
5. Other Types of EmergenciesLFAs confer


C. Radiological Sabotage and Terrorism




[ Prev | Next | Top of file  ]

For fixed facilities and materials in transit, responses to radiological emergencies generally do not depend on the initiating event. The coordinated response to contain or mitigate a threatened or actual release of radioactive material would be essentially the same whether it resulted from an accidental or deliberate act. For malevolent acts involving improvised nuclear or radiation dispersal devices, the response is further complicated by the magnitude of the threat and the need for specialized technical expertise/actions. Therefore, sabotage and terrorism are not treated as separate types of emergencies rather, they are considered a complicating dimension of the types listed in Table II-1.

The Atomic Energy Act directs the Federal Bureau of Investigation (FBI) to investigate all alleged or suspected criminal violations of the Act. Additionally, the FBI is legally responsible for locating any nuclear weapon, device, or material and for restoring nuclear facilities to their rightful custodians. In view of its unique responsibilities under the Atomic Energy Act (amended by the Energy Reorganization Act), the FBI has concluded formal agreements with the LFAs that provide for interface, coordination, and technical assistance in support of the FBI's mission.

Generally, for fixed facilities and materials in transit, the designated LFA and supporting agencies will perform the functions delineated in this plan and provide technical support and assistance to the FBI in the performance of its mission. It would be difficult to outline all the possible scenarios arising from criminal or terrorist activity. As a result, the Federal response will be tailored to the specific circumstances of the event at hand. For those emergencies where an LFA is not specifically designated (e.g., improvised nuclear device), the Federal response will be guided by the established interagency agreements and contingency plans. In accordance with these agreements and plans, the signatory agency(ies) supporting the FBI will coordinate and manage the technical portion of the response and activate/request assistance under the FRERP for measures to protect the public health and safety. In all cases, the FBI will manage and direct the law enforcement and intelligence aspects of the response coordinating activities with appropriate Federal, State, and local agencies within the framework of the FRERP and/or as provided for in established interagency agreements or plans.


D. Response Functions and Responsibilities




[ Prev | Next | Top of file  ]

1. Onscene Coordination

The LFA will lead and coordinate all Federal onscene actions and assist State and local governments in determining measures to protect life, property, and the environment. The LFA will ensure that FEMA and other Federal agencies assist the State and local government agencies in implementing protective actions, if requested by the State and local government agencies.

The LFA will coordinate Federal response activities from an onscene location, referred to as the Joint Operations Center (JOC). Until the LFA has established its base of operations in a JOC, the LFA will accomplish that coordination from another LFA facility, usually a Headquarters operations center.

In the absence of existing agreements for radiological emergencies occurring on or with possible consequences to Indian tribal lands, DOI will provide liaison between federally recognized Indian tribal governments and LFA, State, and local agencies for coordination of response and protective action efforts. Additionally, DOI will advise and assist the LFA on economic, social, and political matters in the United States insular areas should a radiological emergency occur.

2. Onsite Management

The LFA will oversee the onsite response monitor and support owner or operator activities (when there is an owner or operator) provide technical support to the owner or operator, if requested and serve as the principal Federal source of information about onsite conditions. The LFA will provide a hazard assessment of onsite conditions that might have significant offsite impact and ensure onsite measures are taken to mitigate offsite consequences.

3. Radiological Monitoring and Assessment

DOE has the initial responsibility for coordinating the offsite Federal radiological monitoring and assessment assistance during the response to a radiological emergency. In a prolonged response, EPA will assume the responsibility for coordinating the assistance at some mutually agreeable time, usually after the emergency phase.

Some of the participating Federal agencies may have radiological planning and emergency responsibilities as part of their statutory authority, as well as established working relationships with State counterpart agencies. The monitoring and assessment activity, coordinated by DOE, does not alter those responsibilities but complements them by providing for coordination of the initial Federal radiological monitoring and assessment response activity.

Activities will:

Federal offsite monitoring and assessment activities will be coordinated with those of the State. Federal agency plans and procedures for implementing this monitoring and assessment activity are designed to be compatible with the radiological emergency planning requirements for State, local governments, specific facilities, and existing memoranda of understanding and interagency agreements.

DOE may respond to a State or LFA request for assistance by dispatching a Radiological Assistance Program (RAP) team. If the situation requires more assistance than a RAP team can provide, DOE will alert or activate additional resources. These resources may include the establishment of a Federal Radiological Monitoring and Assessment Center (FRMAC) to be used as an onscene coordination center for Federal radiological assessment activities. Federal and State agencies are encouraged to collocate their radiological assessment activities.

Federal radiological monitoring and assessment activities will be activated as a component of an FRERP response or pursuant to a direct request from State or local governments, other Federal agencies, licensees for radiological materials, industries, or the general public after evaluating the magnitude of the problem and coordinating with the State(s) involved.

DOE and other participating Federal agencies may learn of an emergency when they are alerted to a possible problem or receive a request for radiological assistance. DOE will maintain national and regional coordination offices as points of access to Federal radiological emergency assistance. Requests for Federal radiological monitoring and assessment assistance will generally be directed to the appropriate DOE radiological assistance Regional Coordinating Office. Requests also can go directly to DOE's Emergency Operations Center (EOC) in Washington, DC. When other agencies receive requests for Federal radiological monitoring and assessment assistance, they will promptly notify the DOE EOC.

a. Role of Department of Energy (DOE)
(1) Initial Response Coordination Responsibility. DOE, as coordinator, has the following responsibilities:
(a) Coordinate Federal offsite radiological environmental monitoring and assessment activities
(b) Maintain technical liaison with State and local agencies with monitoring and assessment responsibilities
(c) Maintain a common set of all offsite radiological monitoring data, in an accountable, secure, and retrievable form, and ensure the technical integrity of the FRMAC data
(d) Provide monitoring data and interpretations, including exposure rate contours, dose projections, and any other requested radiological assessments, to the LFA, and to the States
(e) Provide, in cooperation with other Federal agencies, the personnel and equipment needed to perform radiological monitoring and assessment activities
(f) Request supplemental assistance and technical support from other Federal agencies as needed and
(g) Arrange consultation and support services through appropriate Federal agencies to all other entities (e.g., private contractors) with radiological monitoring functions and capabilities, and technical and medical advice on handling radiological contamination and population monitoring.
(2) Transition of Response Coordination Responsibility. The DOE FRMAC Director will work closely with the Senior EPA representative to facilitate a smooth transition of the Federal radiological monitoring and assessment coordination responsibility to EPA at a mutually agreeable time and after consultation with the States and LFA. The following conditions are intended to be met prior to this transfer:
(a) The immediate emergency condition has been stabilized
(b) Offsite releases of radioactive material have ceased, and there is little or no potential for further unintentional offsite releases
(c) The offsite radiological conditions have been characterized and the immediate consequences have been assessed
(d) An initial long-range monitoring plan has been developed in conjunction with the affected States and appropriate Federal agencies and
(e) EPA has received adequate assurances from the other Federal agencies that they will commit the required resources, personnel, and funds for the duration of the Federal response.
b. Role of the Environmental Protection Agency (EPA)

Prior to assuming responsibility for the FRMAC, EPA will:

(1) Provide resources, including personnel, equipment, and laboratory support (including mobile laboratories), to assist DOE in monitoring radioactivity levels in the environment
(2) Assume coordination of Federal radiological monitoring and assessment responsibilities from DOE after the transition
(3) Assist in the development and implementation of a long- term monitoring plan and
(4) Provide nationwide environmental monitoring data from the Environmental Radiation Ambient Monitoring Systems for assessing the national impact of the accident.
c. Role of the Lead Federal Agency (LFA)
(1) Ensure that State's needs are addressed.
(2) Approve the release of official Federal offsite monitoring data and assessments.
(3) Provide other available radiological monitoring data to the State and to the FRMAC.
d. Role of Other Federal Agencies

Agencies carrying out responsibilities related to radiological monitoring and assessment during a Federal response also will coordinate their activities with FRMAC. This coordination will not limit the normal working relationship between a Federal agency and its State counterparts nor restrict the flow of information from that agency to the States. The radiological monitoring and assessment responsibilities of the other Federal agencies include:

(1) Department of Agriculture (USDA)

(a) Inspect meat and meat products, poultry and poultry products, and egg products identified for interstate and foreign commerce to assure that they are safe for human consumption.
(b) Assist, in conjunction with HHS, in monitoring the production, processing, storage, and distribution of food through the wholesale level to eliminate contaminated product or to reduce the contamination in the product to a safe level.
(c) Collect agricultural samples within the Ingestion Exposure Pathway Emergency Planning Zone. Assist in the evaluation and assessment of data to determine the impact of the emergency on agriculture.
(2) Department of Commerce (DOC)
(a) Prepare operational weather forecasts tailored to support emergency response activities.
(b) Prepare and disseminate predictions of plume trajectories, dispersion, and deposition.
(c) Archive, as a special collection, the meteorological data from national observing systems applicable to the monitoring and assessment of the response.
(d) Ensure that marine fishery products available to the public are not contaminated.
(e) Provide assistance and reference material for calibrating radiological instruments.
(3) Department of Defense (DOD)
(a) Provide radiological resources to include trained response personnel, specialized radiation instruments, mobile instrument calibration, repair capabilities, and expertise in site restoration.
(b) Perform special sampling of airborne contamination on request.
(4) Department of Health and Human Services (HHS)
(a) In conjunction with USDA, inspect production, processing, storage, and distribution facilities for human food and animal feeds, which may be used in interstate commerce, to assure protection of the public health.
(b) Collect samples of agricultural products to monitor and assess the extent of contamination as a basis for recommending or implementing protective actions.
(5) Department of the Interior (DOI)
(a) Provide hydrologic advice and assistance, including monitoring personnel, equipment, and laboratory support.
(b) Advise and assist in evaluating processes affecting radioisotopes in soils, including personnel, equipment, and laboratory support.
(c) Advise and assist in the development of geographical information systems (GIS) databases to be used in the analysis and assessment of contaminated areas including personnel, equipment, and databases.
(6) Nuclear Regulatory Commission (NRC)
(a) Provide assistance in Federal radiological monitoring and assessment activities during incidents.
(b) Provide, where available, continuous measurement of ambient radiation levels around NRC licensed facilities, primarily power reactors using thermoluminescent dosimeters (TLD).

4. Protective Action Recommendations

Federal protective action recommendations provide advice to State and local governments on measures that they should take to avoid or reduce exposure of the public to radiation from a release of radioactive material. This includes advice on emergency actions such as sheltering, evacuation, and prophylactic use of stable iodine. It also includes longer term measures to avoid or minimize exposure to residual radiation or exposure through the ingestion pathway such as restriction of food, temporary relocation, and permanent resettlement.

a. Role of the Lead Federal Agency (LFA)

The LFA will assist State and local authorities, if requested, by advising them on protective actions for the public. The development or evaluation of protective action recommendations will be based upon the Protective Action Guides (PAGs) issued by EPA and HHS. In providing such advice, the LFA will use advice from other Federal agencies with technical expertise on those matters whenever possible. The LFA's responsibilities for the development, evaluation, and presentation of protective action recommendations are to:

(1) Respond to requests from State and local governments for technical information and assistance
(2) Consult with representatives from EPA, HHS, USDA, and other Federal agencies as needed to provide advice to the LFA on protective actions
(3) Review all recommendations made by other Federal agencies exercising statutory authorities related to protective actions to ensure consistency
(4) Prepare a coordinated Federal position on protective action recommendations whenever time permits and
(5) Present the Federal assessment of protective action recommendations, in conjunction with FEMA and other Federal agencies when practical, to State or other offsite authorities.
b. Role of the Advisory Team for Environment, Food, and Health

Advice on environment, food, and health matters will be provided to the LFA through the Advisory Team for Environment, Food, and Health (Advisory Team) consisting of representatives of EPA, HHS, and USDA supported by other Federal agencies, as warranted by the circumstances of the emergency. The Advisory Team provides direct support to the LFA and has no independent authority. The Advisory Team will not release information or make recommendations to the public unless authorized to do so by the LFA. The Advisory Team will select a chair for the Team. The Advisory Team will normally collocate with the FRMAC.

For emergencies with potential for causing widespread radiological contamination where no onscene FRMAC is established, the functions of the Advisory Team may be accomplished in the LFA response facility in Washington, DC.

The primary role of the Advisory Team is to provide a mechanism for timely, interagency coordination of advice to the LFA, States, and other Federal agencies concerning matters related to the following areas:

(1) Environmental assessments (field monitoring) required for developing recommendations
(2) PAGs and their application to the emergency
(3) Protective action recommendations using data and assessment from the FRMAC
(4) Protective actions to prevent or minimize contamination of milk, food, and water and to prevent or minimize exposure through ingestion
(5) Recommendations regarding the disposition of contaminated livestock and poultry
(6) Recommendations for minimizing losses of agricultural resources from radiation effects
(7) Availability of food, animal feed, and water supply inspection programs to assure wholesomeness
(8) Relocation, reentry, and other radiation protection measures prior to recovery
(9) Recommendations for recovery, return, and cleanup issues
(10) Health and safety advice or information for the public and for workers
(11) Estimate effects of radioactive releases on human health and environment
(12) Guidance on the use of radioprotective substances (e.g., thyroid blocking agents), including dosage and projected radiation doses that warrant the use of such drugs and
(13) Other matters, as requested by the LFA.

5. Other Federal Resource Support

FEMA will coordinate the provision of non-radiological (i.e., not related to radiological monitoring and assessment) Federal resources and assistance to affected State and local governments. The Federal non-radiological resource and assistance coordination function will be performed at the Disaster Field Office (DFO) (or other appropriate location established by FEMA).

a. Role of the Federal Emergency Management Agency (FEMA)
(1) Monitor the status of the Federal response to requests for non-radiological assistance from the affected States and provide this information to the States.
(2) Keep the LFA informed of requests for assistance from the State and the status of the Federal response.
(3) Identify and inform Federal agencies of actual or apparent omissions, redundancies, or conflicts in response activity.
(4) Establish and maintain a source of integrated, coordinated information about the status of all non-radiological resource support activities.
(5) Provide other non-radiological support to Federal agencies responding to the emergency.
b. Role of Other Federal Agencies

In order to properly coordinate activities, Federal agencies responding to requests for non- radiological support or directly providing such support under statutory authorities will provide liaison personnel to the DFO. The following indicates types of assistance that may be provided by Federal agencies as needed or requested:

(1) Department of Agriculture (USDA)
(a) Provide emergency food coupon assistance in officially designated disaster areas, if a need is determined by officials and if the commercial food system is sufficient to accommodate the use of food coupons.
(b) Provide for placement of USDA donated food supplies from warehouses, local schools, and other outlets to emergency care centers. These are foods donated to various outlets through USDA food programs.
(c) Provide lists that identify locations of alternate sources of food and livestock feed.
(d) Assist in providing temporary housing for evacuees.
(e) Assess damage to crops, soil, livestock, poultry, and processing facilities and incorporate findings in a damage assessment report.
(f) Provide emergency communications assistance to the agricultural community through the State Research, Education, and Extension Services" electronic mail system.
(2) Department of Commerce (DOC)
Provide radiation shielding materials.
(3) Department of Defense (DOD)
DOD may provide assistance in the form of personnel, logistics and telecommunications, advice on proper medical treatment of personnel exposed to or contaminated by radioactive materials, and assistance, including airlift services, when available, upon the request of the LFA or FEMA. Requests for assistance must be directed to the National Military Command Center or through channels established by prior agreements.
(4) Department of Energy (DOE)-Provide advice on proper medical treatment of personnel exposed to or contaminated by radioactive materials.
(5) Department of Health and Human Services (HHS)
(a) Ensure the availability of health and medical care and other human services (especially for the aged, poor, infirm, blind, and others most in need).
(b) Assist in providing crisis counseling to victims in affected geographic areas.
(c) Provide guidance to State and local health officials on disease control measures and epidemiological surveillance and study of exposed populations.
(d) Provide advice on proper medical treatment of personnel exposed to or contaminated by radioactive materials.
(e) Provide advice and guidance in assessing the impact of the effects of radiological incidents on the health of persons in the affected area.
(6) Department of Housing and Urban Development (HUD)
(a) Review and report on available housing for disaster victims and displaced persons.
(b) Assist in planning for and placing homeless victims in available housing.
(c) Provide staff to support emergency housing within available resources.
(d) Provide housing assistance and advisory personnel.
(7) Department of the Interior (DOI)
Advise and assist in assessing impacts to economic, social, and political issues relating to natural resources, including fish and wildlife, subsistence uses, public lands, Indian Tribal lands, land reclamation, mining, minerals, and water resources.
(8) Department of Transportation (DOT)
(a) Support State and local governments by identifying sources of civil transportation on request and when consistent with statutory responsibilities.
(b) Coordinate the Federal civil transportation response in support of emergency transportation plans and actions with State and local governments. (This may include provision of Federally controlled transportation assets and the controlling of airspace or transportation routes to protect commercial transportation and to facilitate the movement of response resources to the scene.)
(c) Provide Regional Emergency Transportation Coordinators and staff to assist State and local authorities in planning and response.
(d) Provide technical advice and assistance on the transportation of radiological materials and the impact of the incident on the transportation system.
(9) Department of Veterans Affairs (VA)
(a) Provide medical assistance using Medical Emergency Radiological Response Teams (MERRTs).
(b) Provide temporary housing.
(10) General Services Administration (GSA)
(a) Provide acquisition and procurement of floor space, telecommunications and automated data processing services, supplies, services, transportation, computers, contracting, equipment, and material as well as specified logistical services that exceed the capabilities of other Federal agencies.
(b) Activate the Regional Emergency Communications Planner (RECP) and a Federal Emergency Communications Coordinator (FECC). RECP will provide technical support and accept guidance from the FEMA Regional Director during the pre-deployment phase of a telecommunications emergency.
(c) Upon request, will dispatch the FECC to the scene to expedite the provision of the telecommunications services.
(11) National Communications System (NCS)-Acting through its operational element, the National Coordinating Center for Telecommunications (NCC), the NCS will ensure the provision of adequate telecommunications support to Federal FRERP operations.


6. Public Information Coordination

Public information coordination is most effective when the owner/operator, Federal, State, local, and other relevant information sources participate jointly. The primary location for linking these sources is the Joint Information Center (JIC).

Prior to the establishment of Federal operations at the JIC, it may be necessary to release Federal information regarding public health and safety. In these instances, Federal agencies will coordinate with the LFA and the State in advance or as soon as possible after the information has been released.

This coordination will accomplish the following: compile information about the status of the emergency, response actions, and instructions for the affected population coordinate all information from various sources with the other Federal, State, local, and non-governmental response organizations allow various sources to work cooperatively, yet maintain their independence in disseminating information disseminate timely, consistent, and accurate information to the public and the news media and establish coordinated arrangements for dealing with citizen inquiries.

a. Role of the Lead Federal Agency (LFA)

The LFA is responsible for information on the status of the overall Federal response, specific LFA response activities, and the status of onsite conditions.

The LFA will:

(1) Develop joint information procedures for providing Federal information to and for obtaining information from all Federal agencies participating in the response
(2) Work with the owner/operator and State and local government information officers to develop timely coordinated public information releases
(3) Inform the media that the JIC is the primary source of onscene public information and news from facility, local, State, and Federal spokespersons
(4) Establish and manage Federal public information operations at the JIC and
(5) Coordinate Federal public information among the various media centers.
b. Role of the Federal Emergency Management Agency (FEMA)

FEMA will assist the LFA in coordinating non-radiological information among Federal agencies and with the State. When mutually agreeable, FEMA may assume responsibility from the LFA for coordinating Federal public information. Should this occur, it will usually be after the onsite situation has been stabilized and recovery efforts have begun.

c. Role of Other Participating Agencies

All Federal agencies with an operational response role under the FRERP will coordinate public information activities at the JIC. Each Federal agency will provide information on the status of its response and on technical information.

7. Congressional and White House Coordination

a. Congressional Coordination

Federal agencies will coordinate their responses to Congressional requests for information with the LFA. Points of contact for this function are the Congressional Liaison Officers. All Federal agency Congressional Liaison Officers and Congressional staffs seeking site-specific information about the emergency should contact the LFA headquarters Congressional Affairs Office. Congress may request information directly from any Federal agency. Any agency responding to such requests should inform the LFA as soon as feasible.

b. White House Coordination

The LFA will report to the President and keep the White House informed on all aspects of the emergency. The White House may request information directly from any Federal agency. Any agency responding to such requests should inform the LFA as soon as feasible. The LFA will submit reports to the White House. The initial report should cover, if possible, the nature of and prognosis for the radiological situation causing the emergency and the actual or potential offsite radiological impact. Subsequent reports by the LFA should cover the status of mitigation, corrective actions, protective measures, and overall Federal response to the emergency. Federal agencies should provide information related to the technical and radiological aspects of the response directly to the LFA. FEMA will compile information related to the non-radiological resource support aspects of the response and submit to the LFA for inclusion in the report(s).

8. International Coordination

In the event of an environmental impact or potential impact upon the United States, its possessions, Territories, or territorial waters from a radiological emergency originating on foreign soil or, conversely, a domestic incident with an actual or potential foreign impact, the LFA will immediately inform DOS (which has responsibility for official interactions with foreign governments). The LFA will keep DOS informed of all Federal response activities. The DOS will coordinate notification and information gathering activities with foreign governments, except in cases where existing bilateral agreements permit direct communication. Where the LFA has existing bilateral agreements that permit direct exchange of information, those agencies should keep DOS informed of consultations with their foreign counterparts. Agency officials should take care that consultations do not exceed the scope of the relevant agreement(s). The LFA will ensure that any offers of assistance to or requests from foreign governments are coordinated with DOS.

9. Response Function Overview

Table II-2 provides an overview of the responsible Federal agencies for major response functions.

Table II-2.-Response Function Overview
Response actionResponsible agency
(1) Maintain cognizance of the Federal response conduct and manage Federal onsite actions. LFA
(2) Coordinate Federal offsite radiological monitoring and assessment:
  -Initial ResponseDOE.
-Intermediate and Long-Term ResponseEPA
(3) Develop and evaluate recommendations for offsite protective actions for the public.LFA, in coordination with other agencies.
(4) Present recommendations for offsite protective actions to the appropriate State and/or local officialsLFA, FEMA, in conjunction with other Federal agencies when practical.
(5) Coordinate Federal offsite non-radiological resource support. FEMA
(6) Coordinate release of Federal information to the LFA after public. mutual agreement.FEMA
(7) Coordinate release of Federal information to LFA.Congress
(8) Provide reports to the President and keep the White House informed on all aspects of the emergency.LFA
(9) Coordinate international aspects and make DOS as required international notifications. appropriate.LFA
(10) Coordinate the law enforcement aspects of a criminal act involving radioactive material.DOJ/FBI


E. Stages of the Federal Response




[ Prev | Next | Top of file  ]

The Federal response is divided into five stages: Notification, Activation and Deployment, Response Operations, Response Deactivation, and Recovery.

1. Notification

The owner or operator of the facility or radiological activity is generally the first to become aware of a radiological emergency and is responsible for notifying the State and local authorities and the LFA. The notification should include:

If any Federal agency receives notification from any source other than FEMA or the LFA, the agency will notify the LFA. See Figure II-1 for the notification process.





a. Role of the Lead Federal Agency (LFA)
(1) Verify accuracy of notification
(2) Notify FEMA and advisory team agencies and provide information
(3) Verify that other Federal agencies have been notified and
(4) Verify that the State has been notified.
b. Role of Federal Emergency Management Agency (FEMA)
(1) Verify that the State has been notified of the emergency and
(2) Notify other Federal agencies as appropriate.

2. Activation and Deployment

Once notified, each agency will respond according to its plan. The LFA will assess the technical response requirements and cause the activation and deployment of response components. FEMA, in conjunction with the LFA, will coordinate the non-radiological assistance in support of State and local governments. Initially, the LFA, FEMA, and other Federal agencies will coordinate response actions from their headquarters locations, usually from their respective headquarters EOCs.

a. Role of the Lead Federal Agency (LFA)
(1) Deploy LFA response personnel to the scene and provide liaison to the State and local authorities as appropriate
(2) Designate a Federal Onscene Commander (OSC) at the scene of the emergency to manage onsite activities and coordinate the overall Federal response to the emergency
(3) Establish bases of Federal operation, such as the JOC and the JIC
(4) Coordinate the Federal response with the owner/operator and
(5) Provide advice on the radiological hazard to the Federal responders.
b. Role of Federal Emergency Management Agency (FEMA)
(1) Activate a Regional Operations Center (ROC) to monitor the situation
(2) Establish contact with the LFA and the affected State to determine the status of non-radiological response requirements
(3) Designate a Senior FEMA Official (SFO) to coordinate activities with the LFA and
(4) Coordinate the provision of non-radiological Federal resources and assistance.
c. Role of Other Federal Agencies
(1) Designate an onscene Senior Agency Official
(2) Activate agency emergency response personnel and deploy them to the scene
(3) Deploy FRMAC assets
(4) Deploy Advisory Team representatives
(5) Keep the LFA and FEMA informed of status of response activities and
(6) Coordinate all State requests and offsite activities with the LFA and FEMA, as appropriate.

3. Response Operations

The following describes the general operational structure for meeting Federal agency roles and responsibilities in response to a radiological emergency. At the headquarters level, the LFA, FEMA, and other Federal agencies (OFAs) will generally exchange liaison personnel and maintain staffs at their EOCs to support their respective onscene operations. Federal agencies may also activate a regional or field office EOC in support of the emergency. Figure II-2 provides a graphic depiction of the onscene structure.



a. Joint Operations Center (JOC)

The JOC(1) is established by the LFA under the operational control of the Federal OSC as the focal point for management and direction of onsite activities, establishment of State requirements and priorities, and coordination of the overall Federal response. The JOC may be established in a separate onscene location or collocated with an existing emergency operations facility. The following elements may be represented in the JOC:

(1) LFA staff and onsite liaison
(2) FEMA/DFO liaison
(3) FRMAC liaison
(4) Advisory Team liaison
(5) Other Federal agency liaison, as needed
(6) LFA Public information liaison
(7) LFA Congressional liaison and
(8) State and local liaison.
b. Disaster Field Office (DFO)

The DFO is established by FEMA as the focal point for the coordination and provision of non-radiological resource support based on coordinated State requirements/priorities. The DFO is established at an onscene location in coordination with State and local authorities and other Federal agencies. The following elements may be represented in the DFO:

(1) LFA liaison
(2) Other appropriate Federal agency personnel
(3) State and local liaison
(4) Public information liaison and
(5) Congressional liaison.
c. Federal Radiological Monitoring and Assessment Center (FRMAC)

The FRMAC is established by DOE (with subsequent transfer to EPA for intermediate and long-term actions) for the coordination of Federal radiological monitoring and assessment activities with that of State and local agencies. The FRMAC is established at an onscene location in coordination with State and local authorities and other Federal agencies. The following elements may be represented in the FRMAC:

(1) DOE/DOE contractor technical staff and capabilities
(2) EPA/EPA contractor technical staff and capabilities
(3) DOC technical staff and capabilities
(4) LFA technical liaison
(5) DOE public information liaison
(6) Other Federal agency liaisons, as needed
(7) State and local liaison and
(8) DFO liaison.
d. Advisory Team for Environment, Food, and Health

The Advisory Team is established by representatives from EPA, USDA, HHS, and other Federal agencies as needed for the provision of interagency coordinated advice and recommendations to the State and LFA concerning environmental, food, and health matters. For the ease of transfer of radiological monitoring and assessment data and coordination with Federal, State, and local representatives, the Advisory Team is normally collocated with the FRMAC.

e. Joint Information Center (JIC)

The JIC(2) is established by the LFA, under the operational control of the LFA-designated Public Information Officer, as a focal point for the coordination and provision of information to the public and media concerning the Federal response to the emergency. The JIC is established at an onscene location in coordination with State and local agencies and other Federal agencies. The following elements should be represented at the JIC:

(1) LFA Public Information Officer and staff
(2) FEMA Public Information Officer and staff
(3) Other Federal agency Public Information, as needed
(4) State and local Public Information Officers and
(5) Owner/Operator Public Information Officers and staff.

4. Response Deactivation

a. Each agency will discontinue emergency response operations when advised that Federal assistance is no longer required from their agency or when its statutory responsibilities have been fulfilled. Prior to discontinuing its response operation, each agency should discuss its intent to do so with the LFA, FEMA, and the State.

b. The LFA will consult with participating Federal agencies and the State and local government to determine when the Federal information coordination operations at the JIC should be terminated. This will occur normally at a time when the rate of information generated and coordinated by the LFA has decreased to the point where it can be handled through the normal day-to-day coordination process. The LFA will inform the other participants of their intention to deactivate Federal information coordination operations at the JIC and advise them of the procedures for continued coordination of information pertinent to recovery from the radiological emergency.

c. FEMA will consult with the LFA, other Federal agencies, and the State(s) as to when the onscene coordination of non- radiological assistance is no longer required. Prior to ending operations at the DFO, FEMA will inform all participating organizations of the schedule for doing so.

d. The LFA will terminate JOC operations and the Federal response after consulting with FEMA, other participating Federal agencies, and State and local officials, and after determining that onscene Federal assistance is no longer required.

e. The agency managing the FRMAC will consult with the LFA, FEMA, other participating Federal agencies, and State and local officials to determine when a formal FRMAC structure and organization is no longer required. Normally, this will occur when operations move into the recovery phase and extensive Federal multi-agency resources are no longer required to augment State and local radiological monitoring and assessment activities.

5. Recovery

a. The State or local governments have the primary responsibility for planning the recovery of the affected area. (The term recovery as used here encompasses any action dedicated to the continued protection of the public and resumption of normal activities in the affected area.) Recovery planning will be initiated at the request of the States, but it will generally not take place until after the initiating conditions of the emergency have stabilized and immediate actions to protect public health and safety and property have been accomplished. The Federal Government will, on request, assist the State and local governments in developing offsite recovery plans, prior to the deactivation of the Federal response. The LFA will coordinate the overall activity of Federal agencies involved in the recovery process.

b. The radiological monitoring and assessment activities will be terminated when the EPA, after consultation with the LFA and other participating Federal agencies, and State and local officials, determines that:

(1) There is no longer a threat to the public health and safety or to the environment,
(2) State and local resources are adequate for the situation, and
(3) There is mutual agreement of the agencies involved to terminate the response.


Appendix A: Acronyms




[ Prev | Next | Top of file ]

CFRCode of Federal Regulations
DFODisaster Field Office
DOCDepartment of Commerce
DODDepartment of Defense
DOEDepartment of Energy
DOI Department of the Interior
DOJDepartment of Justice
DOSDepartment of State
DOTDepartment of Transportation
EICCEmergency Information and Coordination Center
EOExecutive Order
EOCEmergency Operations Center
EPA Environmental Protection Agency
ERTEmergency Response Team
ERT-AEmergency Response Team-Advance Element
FBI Federal Bureau of Investigation
FCOFederal Coordinating Officer
FECCFederal Emergency Communications Coordinator
FEMAFederal Emergency Management Agency
FRERP Federal Radiological Emergency Response Plan
FRMACFederal Radiological Monitoring and Assessment Center
FRPFederal Response Plan
FRPCC Federal Radiological Preparedness Coordinating Committee
GISGeographical Information Systems
GSAGeneral Services Administration
HHSDepartment of Health and Human Services
HUDDepartment of Housing and Urban Development
JIC Joint Information Center
JOCJoint Operations Center
LFALead Federal Agency
MERRT Medical Emergency Radiological Response Team
NASANational Aeronautics and Space Administration
NCCNational Coordinating Center for Telecommunications
NCSNational Communications System
NDA National Defense Area
NOAA National Oceanic and Atmospheric Administration (DOC)
NRCNuclear Regulatory Commission
NSANational Security Area
OSCOnscene Commander
PAGProtective Action Guide
PIOPublic Information Officer
RAP Radiological Assistance Program (DOE)
RECPRegional Emergency Communications Planner
SCOState Coordinating Officer
SFOSenior FEMA Official
TLDThermoluminescent dosimeter
USDAUnited States Department of Agriculture
VADepartment of Veterans Affairs


Appendix B-Definitions




[ Prev | Next | Top of file  ]

Advisory Team for Environment, Food, and Health
An interagency team, consisting of representatives from EPA, HHS, USDA, and representatives from other Federal agencies as necessary, that provides advice to the LFA and States, as requested on matters associated with environment, food, and health issues during a radiological emergency.
Agreement State
A State that has entered into an Agreement under the Atomic Energy Act of 1954, as amended, in which NRC has relinquished to such States the majority of its regulatory authority over source, byproduct, and special nuclear material in quantities not sufficient to form a critical mass.
Assessment
The evaluation and interpretation of radiological measurements and other information to provide a basis for decision- making. Assessment can include projections of offsite radiological impact.
Coordinate
To advance systematically an exchange of information among principals who have or may have a need to know certain information in order to carry out their role in a response.
Disaster Field Office (DFO)
A center established in or near the designated area from which the Federal Coordinating Officer (FCO) and representatives of Federal response agencies will interact with State and local government representatives to coordinate non-technical resource support.
Emergency
Any natural or man-caused situation that results in or may result in substantial injury or harm to the population or substantial damage to or loss of property.
Emergency Response Team (ERT)
A team of Federal interagency personnel headed by FEMA and deployed to the site of an emergency to serve as the FCO's key staff and assist with accomplishing FEMA responsibilities at the DFO.
Federal Coordinating Officer (FCO)
The Federal official appointed in accordance with the provisions of P.L. 93-288, as amended, to coordinate the overall response and recovery activities under a major disaster or emergency declaration. The FCO represents the President as provided by Section 302 of P.L. 93-288, as amended, for the purpose of coordinating the administration of Federal relief activities in the designated area. Additionally, the FCO is delegated responsibilities and performs those for the FEMA Director as outlined in Executive Order 12148, and those responsibilities delegated to the FEMA Regional Director in Title 44 Code of Federal Regulations, Part 206.
Federal Radiological Monitoring and Assessment Center (FRMAC)
An operations center usually established near the scene of a radiological emergency from which the Federal field monitoring and assessment assistance is directed and coordinated.
Federal Radiological Preparedness Coordinating Committee (FRPCC)
An interagency committee, created under 44 CFR Part 351, to coordinate Federal radiological planning and training.
Federal Response Plan (FRP)
The plan designed to address the consequences of any disaster or emergency situation in which there is a need for Federal assistance under the authorities of the Robert T. Stafford Disaster Relief and Emergency Assistance Act, 42 U.S.C. 5121 et seq.
FRMAC Director
The person designated by DOE or EPA to manage operations in the FRMAC.
Joint Information Center (JIC)
A center established to coordinate the Federal public information activities onscene. It is the central point of contact for all news media at the scene of the incident. Public information officials from all participating Federal agencies should collocate at the JIC. Public information officials from participating State and local agencies also may collocate at the JIC.
Joint Operations Center (JOC)
Established by the LFA under the operational control of the OSC, as the focal point for management and direction of onsite activities, coordination/establishment of State requirements/priorities, and coordination of the overall Federal response.
Joint U.S. Government/Foreign Government Space Venture
Any space venture conducted jointly by the U.S. Government (DOD or NASA) with a foreign government or foreign governmental entity that is characterized by an ongoing U.S. Government interest in the successful completion of the mission, active involvement in mission operations, and uses radioactive sources and/or classified components, regardless of which country owns or provides said sources or components, within the space vehicle. For the purposes of this plan, in a situation whereby the U.S. Government simply sells or supplies radioactive material to a foreign country for use in a space vehicle and otherwise has no active mission involvement, it shall not be considered a joint venture.
Lead Federal Agency (LFA)
The agency that is responsible for leading and coordinating all aspects of the Federal response is referred to as the LFA and is determined by the type of emergency. In situations where a Federal agency owns, authorizes, regulates, or is otherwise deemed responsible for the facility or radiological activity causing the emergency and has authority to conduct and manage Federal actions onsite, that agency normally will be the LFA.
License
An authorization issued to a facility owner or operator by the NRC pursuant to the conditions of the Atomic Energy Act of 1954, as amended, or issued by an Agreement State pursuant to appropriate State laws. NRC licenses certain activities under section 170(a) of that Act.
Local Government
Any county, city, village, town, district, or political subdivision of any State, and Indian tribe or authorized tribal organization, or Alaska Native village or organization, including any rural community or unincorporated town or village or any other public entity.
Monitoring
The use of sampling and radiation detection equipment to determine the levels of radiation.
National Defense Area (NDA)
An area established on non-Federal lands located within the United States, its possessions or its territories, for safeguarding classified defense information or protecting DOD equipment and/or material. Establishment of a National Defense Area temporarily places such non-Federal lands under the effective control of the Department of Defense and results only from an emergency event. The senior DOD representative at the scene shall define the boundary, mark it with a physical barrier, and post warning signs. The landowner's consent and cooperation shall be obtained whenever possible however, military necessity shall dictate the final location, shape, and size of the NDA.
National Security Area (NSA)
An area established on non-Federal lands located within the United States, its possessions or territories, for safeguarding classified information, and/or restricted data or equipment and material belonging to DOE or NASA. Establishment of a National Security Area temporarily places such non-Federal lands under the effective control of DOE or NASA and results only from an emergency event. The senior DOE or NASA representative having custody of the material at the scene shall define the boundary, mark it with a physical barrier, and post warning signs. The landowner's consent and cooperation shall be obtained whenever possible however, operational necessity shall dictate the final location, shape, and size of the NSA.
Nuclear Facilities
Nuclear installations that use or produce radioactive materials in their normal operations.
Offsite
The area outside the boundary of the onsite area. For emergencies occurring at fixed nuclear facilities, "offsite" generally refers to the area beyond the facility boundary. For emergencies that do not occur at fixed nuclear facilities and for which no physical boundary exists, the circumstances of the emergency will dictate the boundary of the offsite area. Unless a Federal agency has the authority to define and control a restricted area, the State or local government will define an area as "onsite" at the time of the emergency, based on required response activities.
Offsite Federal Support
Federal assistance in mitigating the offsite consequences of an emergency and protecting the public health and safety, including assistance with determining and implementing public protective action measures.
Onscene
The area directly affected by radiological contamination and environs. Onscene includes onsite and offsite areas.
Onscene Commander (OSC)
The lead official designated at the scene of the emergency to manage onsite activities and coordinate the overall Federal response to the emergency.
Onsite
The area within (a) the boundary established by the owner or operator of a fixed nuclear facility, or (b) the area established by the LFA as a National Defense Area or National Security Area, or (c) the area established around a downed/ditched U.S. spacecraft, or (d) the boundary established at the time of the emergency by the State or local government with jurisdiction for a transportation accident not occurring at a fixed nuclear facility and not involving nuclear weapons.
Onsite Federal Support
Federal assistance that is the primary responsibility of the Federal agency that owns, authorizes, regulates, or is otherwise deemed responsible for the radiological facility or material being transported, i.e., the LFA. This response supports State and local efforts by supporting the owner or operator's efforts to bring the incident under control and thereby prevent or minimize offsite consequences.
Owner or Operator
The organization that owns or operates the nuclear facility or carrier or cargo that causes the radiological emergency. The owner or operator may be a Federal agency, a State or local government, or a private business.
Protective Action Guide (PAG)
A radiation exposure or contamination level or range established by appropriate Federal or State agencies at which protective actions should be considered.
Protective Action Recommendation (Federal)
Federal advice to State and local governments on measures that they should take to avoid or reduce exposure of the public to radiation from an accidental release of radioactive material. This includes emergency actions such as sheltering, evacuation, and prophylactic use of stable iodine. It also includes longer term measures to avoid or minimize exposure to residual radiation or exposure through the ingestion pathway such as restriction of food, temporary relocation, and permanent resettlement.
Public Information Officer (PIO)
Official at headquarters or in the field responsible for preparing and coordinating the dissemination of public information in cooperation with other responding Federal, State, and local agencies.
Radiological Assistance Program (RAP) Team
A response team dispatched to the site of a radiological incident by the U.S. Department of Energy (DOE) regional coordinating office responding to a radiological incident. RAP Teams are located at DOE operations offices and national laboratories and some area offices.
Radiological Emergency
A radiological incident that poses an actual, potential, or perceived hazard to public health or safety or loss of property.
Recovery
Recovery, in this document, includes all types of emergency actions dedicated to the continued protection of the public or to promoting the resumption of normal activities in the affected area.
Recovery Plan
A plan developed by each State, with assistance from the responding Federal agencies, to restore the affected area.
Regional Operations Center (ROC)
The temporary operations facility for the coordination of Federal response and recovery activities, located at the FEMA Regional Office (or at the Federal Regional Center) and led by the FEMA Regional Director or Deputy Regional Director until the DFO becomes operational.
Senior FEMA Official (SFO)
Official appointed by the Director of FEMA, or his representative, to initially direct the FEMA response at the scene of a radiological emergency. Also, acts as the Team Leader for the Advance Element of the Emergency Response Team (ERT-A).
State Coordinating Officer (SCO)
An official designated by the Governor of the affected State to work with the LFA's Onscene Commander and Senior FEMA Official or Federal Coordinating Officer in coordinating the response efforts of Federal, State, local, volunteer, and private agencies.
Subcommittee on Federal Response
A subcommittee of the Federal Radiological Preparedness Coordinating Committee formed to develop and test the Federal Radiological Emergency Response Plan. Most agencies that will participate in the Federal radiological emergency response are represented on this subcommittee.
Transportation Emergency
For the purposes of this plan, any emergency that involves a transportation vehicle or shipment containing radioactive materials outside the boundaries of a facility.
Transportation of Radioactive Materials
The loading, unloading, movement, or temporary storage en route of radioactive materials.


Appendix C-Federal Agency Response Missions, Capabilities and Resources, References, and Authorities




[ Prev | Next | Top of file ]

Each Federal agency develops and maintains a plan that describes a detailed concept of operations for implementing this Plan. This section contains summary information about the following Federal agencies:

Department of Agriculture (USDA)
Department of Commerce (DOC)
Department of Defense (DOD)
Department of Energy (DOE)
Department of Health and Human Services (HHS)
Department of Housing and Urban Development (HUD)
Department of the Interior (DOI)
Department of Justice (DOJ)
Department of State (DOS)
Department of Transportation (DOT)
Department of Veterans Affairs (VA)
Environmental Protection Agency (EPA)
Federal Emergency Management Agency (FEMA)
General Services Administration (GSA)
National Aeronautics and Space Administration (NASA)
National Communications System (NCS)
Nuclear Regulatory Commission (NRC)

Summary information for each agency contains: (1) a response mission statement, (2) a description of the agency's response capabilities and resources, (3) agency response plan and procedures references, and (4) sources of agency authority.


A. Department of Agriculture




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The United States Department of Agriculture (USDA) provides assistance to State and local governments in developing agricultural protective action recommendations and in providing agricultural damage assessments. USDA will actively participate with EPA and HHS on the Advisory Team for Environment, Food, and Health when convened. USDA regulatory responsibilities for the inspection of meat, meat products, poultry, poultry products, and egg products are essential uninterruptible functions that would continue during an emergency.

2. Capabilities and Resources

USDA can provide assistance to State and local governments through emergency response personnel located at its Washington, DC, headquarters and from USDA State and County Emergency Board representatives located throughout the country. USDA Emergency Board representatives have knowledge of local agriculture and can provide specific advice to the local agricultural community. In addition, USDA State and County Emergency Boards can assist in the collection of agricultural samples during a radiological emergency. USDA actively participates with EPA and HHS on the Advisory Team when convened.

The functions and capabilities of the USDA to provide assistance in the event of a radiological emergency include the following:

  a.Provide assistance through regular USDA programs, if legally adaptable to radiological emergencies
b. Provide emergency food coupon assistance in officially designated disaster areas, if a need is determined by officials and if the commercial food system is sufficient to accommodate the use of food coupons
c.Assist in reallocation of USDA-donated food supplies from warehouses, local schools, and other outlets to emergency care centers. These are foods donated to various outlets through USDA food programs
d.Provide lists that identify locations of alternate sources of food and livestock feed and arrange for transportation of the food and feed if requested
e.Provide advice to State and local officials regarding the disposition of livestock and poultry contaminated by radiation
f. Inspect meat and meat products, poultry and poultry products, and egg products identified for interstate and foreign commerce to assure that they are safe for human consumption
g.Assist State and local officials, in coordination with HHS and EPA, in the recommendation and implementation of protective actions to limit or prevent the ingestion of contaminated food
h. Assist, in conjunction with HHS, in monitoring the production, processing, storage, and distribution of food through the wholesale level to eliminate contaminated product or to reduce the contamination in the product to a safe level
i. Assess damage to crops, soil, livestock, poultry, and processing facilities and incorporate findings into a damage assessment report
j.Provide advice to State and local officials on minimizing losses to agricultural resources from radiation effects
k.Provide information and assistance to farmers, food processors, and distributors to aid them in returning to normal after a radiological emergency
l.Provide a liaison to State agricultural agencies if requested
m.Assist DOE at the FRMAC in collecting agricultural samples within the Ingestion Exposure Pathway Emergency Planning Zone. Assist in the evaluation and assessment of data to determine the impact of the emergency on agriculture
n.Assist in providing temporary housing for evacuees who have been displaced from their homes due to a radiological emergency and
o. Provide emergency communications assistance to the agricultural community through the Cooperative Extension System, an electronic mail system.

3. USDA References

USDA Radiological Emergency Response Plan, January 1988.

4. USDA Specific Authorities.

  a.Title 7, U.S.C. 241-273.
b.Title 7, U.S.C. 341-349.
c.Title 7, U.S.C. 612 C.
d.Title 7, U.S.C. 612 C Note.
e. Title 7, U.S.C. 1431.
f.Title 7, U.S.C. 1622.
g.Title 7, U.S.C. 2014(h).
h. Title 7, U.S.C. 2204.
i.Title 16, U.S.C. 590 a-f.
j.Title 21, U.S.C. 451 et seq.
k. Title 21, U.S.C. 601 et seq.
l. Title 21, U.S.C. 1031-1056.
m.Title 42, U.S.C. 1480.
n.Title 42, U.S.C. 3271-3274.
o. Title 50, U.S.C. Appendix 2251 et seq.
p.Title 7, CFR 2.51 (a)(30).
q. E.O. 12656, November 18, 1988.
r.DR 1800-1, March 5, 1993.


B. Department of Commerce




[ Prev | Next |Top of file  ]

1. Summary of Response Mission

The National Oceanic and Atmospheric Administration (NOAA) is the primary agency within the Department of Commerce (DOC) responsible for providing assistance to the Federal, State, and local organizations responding to a radiological emergency. Other assistance may be provided by the National Institute of Standards and Technology. DOC's responsibilities include:

  a.Acquiring and disseminating weather data and providing weather forecasts in direct support of the emergency response operation
b.Preparing and disseminating predictions of plume trajectories, dispersion, and deposition of radiological material released into the atmosphere
c. Providing local meteorological support as needed to assure the quality of these predictions
d.Organizing and maintaining a special data archive for meteorological information related to the emergency and its assessment
e. Ensuring that marine fishery products available to the public are not contaminated
f. Providing assistance and reference material for calibrating radiological instruments and
g. Providing radiation shielding materials.

2. Capabilities and Resources

NOAA is the principal DOC participant in the response to a radiation accident. NOAA prepares both routine and special weather forecasts, and makes use of these forecasts to predict atmospheric transport and dispersion. NOAA's forecasts may be the basis for all public announcements on the movement of contamination from accidents occurring outside U.S. territory or during domestic accidents when any released radioactive material is expected to be carried offsite. NOAA has capabilities to do the following:

  a.Provide current and forecast meteorological information as needed to guide aerial monitoring and sampling, and to predict the transport and dispersion of radioactive materials (gases, liquids, and particles).
b. Routinely forecast the atmospheric transport, dispersion, and deposition of the radioactive materials, and disseminate the results of these computations via automatic facsimile to all relevant parties, twice per day.
c.Produce (and archive) special high-resolution meteorological data sets for providing an improved capability to predict atmospheric transport and dispersion of radioactive materials in the atmosphere.
d.Augment routine and special upper atmosphere and surface meteorological observation systems, as required to improve the quality of these predictions.
e. Evaluate NOAA's transport and dispersion forecast products in conjunction with those of other nations" weather services responding to the emergency, to provide a more internationally consistent product.

Additionally, DOC may provide support to HHS at its request, through the National Marine Fisheries Service, in order to avoid human consumption of contaminated commercial fishery products (marine area only). The National Institute of Standards and Technology can assist in calibrating radiological instruments by comparison with national standards or by providing standard reference materials for calibration, as well as making extensive data on the physical properties of materials available. The National Institute of Standards and Technology can also supply temporary radiation shielding materials.

3. DOC References

National Plan for Radiological Emergencies at Commercial Nuclear Power Plants. Federal Coordinator for Meteorological Services and Supporting Research, National Oceanic and Atmospheric Administration, November 1982.

4. DOC Specific Authorities

Department of Commerce Organization Order 25-5B, as amended, June 18, 1987.


C. Department of Defense




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The Department of Defense (DOD) is charged with the safe handling, storage, maintenance, assembly, and transportation of nuclear weapons and other radioactive materials in DOD custody, and with the safe operation of DOD nuclear facilities. Inherent in this responsibility is the requirement to protect life and property from any health or safety hazards that could ensue from an accident or significant incident associated with these materials or activities.

The DOD role in a Federal response will depend on the circumstances of the emergency. DOD will be the LFA if the emergency involves one of its facilities or a nuclear weapon in its custody. Within DOD, the military service or agency responsible for the facility, ship, or area is responsible for the onsite response. The military service or agency having custody of the material outside an installation boundary is responsible for the onsite response. For emergencies occurring under circumstances for which DOD is not responsible, DOD will not be the LFA, but will support and assist in the Federal response.

2. Capabilities and Resources

Offsite authority and responsibility at a nuclear accident rest with State and local officials. It is important to recognize that for nuclear weapons or weapon component accidents, land may be temporarily placed under effective Federal control by the establishment of a National Defense Area or National Security Area to protect U.S. Government classified materials. These lands will revert to State control upon disestablishment of the National Defense Area or National Security Area.

DOD has a trained and equipped nuclear response organization to deal with accidents at its facilities or involving materials in its custody. Radiological resources include trained response personnel, specialized radiation instruments, and mobile instrument calibration and repair capabilities. DOD also may perform special sampling of airborne contamination on request. Descriptions of the capabilities and assets of DOD response teams can be found in DOD 5100.52M.

DOD may provide assistance in the form of personnel, logistics and telecommunications, assistance and expertise in site restoration, including airlift services, when available, upon the request of the LFA or FEMA. Requests for assistance must be directed to the National Military Command Center or through channels established by prior agreements.

3. DOD References.

  a.DOD Directive 5100.52, DOD Response to an Accident or Significant Incident Involving Radiological Materials.
b.DOD Directive 5230.16, Nuclear Accident and Incident Public Affairs Guidance.
c. DOD Directive 3025.1, Military Support to Civil Authorities.
d.DOD Directive 3025.12, Military Assistance for Civil Disturbances.
e. DOD Directive 3150.5, DOD Response to Improvised Nuclear Device (IND) Incident.
f. DOD 5100.52M, Nuclear Weapon Accident Response Procedures (NARP) Manual.
g. Joint Federal Bureau of Investigation, Department of Energy, and Department of Defense Agreement for Response to Improvised Nuclear Device Incidents.

4. DOD Specific Authorities.

  a. The Atomic Energy Act of 1954, as amended, 42 U.S.C. 2011- 2284.
b.Public Law 97-351, "Convention on the Physical Protection of Nuclear Material Implementation Act of 1982."
c.Department of Defense, Department of Energy, Federal Emergency Management Agency Memorandum of Agreement on Response to Nuclear Weapon Accidents and Nuclear Weapon Significant Incidents, 1983.


D. Department of Energy




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The Department of Energy (DOE) owns and operates a variety of radiological activities throughout the United States. These activities include: fixed nuclear sites the use, storage, and shipment of a variety of radioactive materials the shipment of spent reactor fuel the production, assembly, and shipment of nuclear weapons and special nuclear materials the production and shipment of radioactive sources for space ventures and the storage and shipment of radioactive and mixed waste. DOE is responsible for the safe operation of these activities and should an emergency occur at one of its sites or an activity under its control, DOE will be the LFA for the Federal response.

Due to its technical capabilities and resources, the DOE may perform other roles within the Federal response to a radiological emergency. With extensive, field-based radiological resources throughout the United States available for emergency deployment, the DOE responds to requests for offsite radiological monitoring and assessment assistance and serves as the initial coordinator of all such Federal assistance (to include initial management of the FRMAC) to State and local governments. With other specialized, deployable assets, DOE assists other Federal agencies responding to malevolent nuclear emergencies, accidents involving nuclear weapons not under DOE custody, emergencies caused by satellites containing radioactive sources, and other radiological incidents as appropriate.

2. Capabilities and Resources

DOE has trained personnel, radiological instruments, mobile laboratories, and radioanalytical facilities located at its national laboratories, production, and other facilities throughout the country. Through eight Regional Coordinating Offices, these resources form the basis for the Radiological Assistance Program, which can provide technical assistance in any radiological emergency. DOE can provide specialized radiation detection instruments and support for both its response as LFA and as initial coordinator of Federal radiological monitoring and assessment assistance. Some of the specialized resources and capabilities include:

  a.Aerial monitoring capability for tracking dispersion of radioactive material and mapping ground contamination
b. A computer-based, emergency preparedness and response predictive capability that provides rapid predictions of the transport, diffusion, and deposition of radionuclides released to the atmosphere and dose projections to people and the environment
c.Specialized equipment and instruments and response teams for locating radioactive materials and handling damaged nuclear weapons
d.Medical experts on radiation effects and the treatment of exposed or contaminated patients and
e.Support facilities for DOE response, including command post supplies, communications systems, generators, and portable video and photographic capabilities.

3. DOE References

  a.DOE Order 5500.1B, Emergency Management System, April 1991.
b.DOE Order 5500.2B, Emergency Categories, Classes, and Notification and Reporting Requirements, April 1991.
c.DOE Order 5500.3A, Planning and Preparedness for Operational Emergencies, April 1991.
d.DOE Order 5500.4A, Public Affairs Policy and Planning Requirements for Emergencies, June 1992.
e.DOE Order 5530.1A, Accident Response Group, September 1991.
f.DOE Order 5530.2, Nuclear Emergency Search Team, September 1991.
g. DOE Order 5530.3, Radiological Assistance Program, January 1992.
h.DOE Order 5530.4, Aerial Measuring System, September 1991.
i. DOE Order 5530.5, Federal Radiological Monitoring and Assessment Center, July 1992.

4. DOE Specific Authorities

  a.Atomic Energy Act of 1954, as amended, 42 U.S.C. 2011- 2284.
b.Energy Reorganization Act of 1974, 42 U.S.C. 5801 et seq.
c.Department of Energy Organization Act of 1977, 42 U.S.C. 7101 et seq.
d. Nuclear Waste Policy Act of 1982, 42 U.S.C. 10101 et seq.
e.Title 44, Code of Federal Regulations, Part 351, Radiological Emergency Planning and Preparedness, 351.24, The Department of Energy.


E. Department of Health and Human Services




[ Prev | Next | Top of file  ]

1. Summary of Response Mission

In a radiological emergency, the Department of Health and Human Services (HHS) assists with the assessment, preservation, and protection of human health and helps ensure the availability of essential health/medical and human services. Overall, the Office of Public Health and Science, Office of Emergency Preparedness, coordinates the HHS emergency response. HHS provides technical and nontechnical assistance in the form of advice, guidance, and resources to Federal, State, and local governments. The principal HHS response comes from the U.S. Public Health Service. HHS actively participates with EPA and USDA on the Advisory Team for Environment, Food, and Health when convened.

2. Capabilities and Resources

HHS has personnel located at headquarters, regional offices, and at laboratories and other facilities who can provide assistance in radiological emergencies. The agency can provide the following kinds of advice, guidance, and assistance:

  a.Assist State and local government officials in making evacuation and relocation decisions
b.Ensure the availability of health and medical care and other human services (especially for the aged, the poor, the infirm, the blind, and others most in need)
c.Provide advice and guidance in assessing the impact of the effects of radiological incidents on the health of persons in the affected area
d.Assist in providing crisis counseling to victims in affected geographic areas
e.Provide guidance on the use of radioprotective substances (e.g., thyroid blocking agents), including dosage, and also projected radiation doses that warrant the use of such drugs
f.In conjunction with DOE and DOD, advise medical personnel on proper medical treatment of people exposed to or contaminated by radioactive materials
g.Recommend Protective Action Guides for food and animal feed and assist in developing technical recommendations on protective measures for food and animal feed and
h. Provide guidance to State and local health officials on disease control measures and epidemiological surveillance and study of exposed populations.

3. HHS References

  a.55 FR 2879, January 29, 1990-Delegations of authority to the Assistant Secretary for Health for department-wide emergency preparedness functions.
b.55 FR 2885, January 29, 1990-Statement of organization, functions and delegations of authority to the Office of Emergency Preparedness.
c.Federal Response Plan, Emergency Support Functions #8 (Health and Medical Services), April 1992.
d.Disaster Response Guides, Operating Divisions, Various Dates.

4. HHS Specific Authorities

  a.Public Health Service Act, as amended, 42 U.S.C. 201 et seq.
b.Federal Food, Drug, and Cosmetic Act of 1938, as amended, 21 U.S.C. 301-392.
c.Snyder Act, 25 U.S.C. 13 (1921).
d.Transfer Act, 42 U.S.C. 2004b.
e.Indian Health Care Improvement Act, 25 U.S.C. 1601 et seq.
f.The Robert T. Stafford Disaster Relief and Emergency Assistance Act, as amended, Title VI, 42 U.S.C. 5195 et seq.
g.Comprehensive Environmental Response, Compensation, and Liability Act of 1980 (SUPERFUND), 42 U.S.C. 9601 et seq., as amended by the SUPERFUND Amendments and Reauthorization Act of 1986 (Public Law 99-499) (1986).
h.42 U.S.C. 3030-Section 310 of the Older Americans Act.
i.42 U.S.C. 601 et seq.-Section 401 et seq. of the Social Security Act.
j.45 CFR 233.120-Emergency Community Services Homeless Grant Program.
k.45 CFR 233.120-AFDC Emergency Assistance Program.
l.45 CFR 233.20(a)(2)(v)-AFDC Special Needs Allowance.
m.Runaway and Homeless Youth Act, as amended, Section 366(0).
n.Omnibus Budget Reconciliation Act of 1981, Title XXVI (as amended by Public Laws 98-558, 99-425, 101-501, 101-517)- Low Income Home Energy Assistance Program.
o.E.O. 12656, National Security Emergency Preparedness-Part 8.


F. Department of Housing and Urban Development




[ Prev | Next |Top of file ]

1. Summary of Response Mission

The Department of Housing and Urban Development (HUD) provides information on available housing for disaster victims or displaced persons. HUD assists in planning for and placing homeless victims by providing emergency housing and technical support staff within available resources.

2. Capabilities and Resources

HUD has capabilities to do the following:

  a.Review and report on available housing for disaster victims and displaced persons
b.Assist in planning for and placing homeless victims in available housing
c.Provide staff to support emergency housing within available resources and
d.Provide technical housing assistance and advisory personnel.

3. HUD References

HUD Handbook 3200.02, REV-3, "Disaster Response and Assistance."

4. HUD Specific Authorities

HUD housing programs provide the Department some discretion, to the extent permissible by law, in granting waivers of eligibility requirements to disaster- displaced families. These programs provide rental housing assistance, HUD/FHA-insured loans to repair and rebuild homes, and HUD/FHA- insured loans to purchase new or existing housing, under the following authorities:

  a.National Housing Act, as amended, 12 U.S.C. 1701 et seq.
b. United States Housing Act of 1977, as amended, 42 U.S.C. 1437c et seq.
c.Housing and Community Development Act of 1974, as amended, 42 U.S.C. 5301 et seq.
d.National Affordable Housing Act of 1990 (P.L. 101-625), as amended.


G. Department of the Interior




[ Prev | Next |Top of file  ]

1. Summary of Response Mission

The Department of the Interior (DOI) manages over 500 million acres of Federal lands and thousands of Federal natural resources facilities and is responsible for these lands and facilities, as well as other natural resources such as endangered and threatened species, migratory birds, anadromous fish, and marine mammals, when they are threatened by a radiological emergency. In addition, DOI coordinates emergency response plans for DOI-managed refuges, parks, recreation areas, monuments, public lands, and Indian trust lands with State and local authorities operates its water resources projects to protect municipal and agricultural water supplies in cases of radiological emergencies and provides advice and assistance concerning hydrologic and natural resources, including fish and wildlife, to Federal, State, and local governments upon request. DOI also administers the Federal Government's trust responsibility for 512 Federally recognized Indian tribes and villages, and about 50 million acres of Indian lands. The Bureau of Indian Affairs of the Department of the Interior is available to assist other agencies in consulting with these tribes about radiological emergency preparedness and responses to emergencies. DOI also has certain responsibilities for the United States insular areas.

2. Capabilities and Resources

DOI has personnel at headquarters and in regional offices with technical expertise to do the following:

  a.Advise and assist in assessing the nature and extent of radioactive releases to water resources including support of monitoring personnel, equipment, and laboratory analytical capabilities.
b.Advise and assist in evaluating processes affecting radioisotopes in soils, including personnel, equipment, and laboratory support.
c.Advise and assist in the development of geographical information systems (GIS) databases to be used in the analysis and assessment of contaminated areas including personnel, equipment, and databases.
d.Provide hydrologic advice and assistance, including monitoring personnel, equipment, and laboratory support.
e. Advise and assist in assessing and minimizing offsite consequences on natural resources, including fish and wildlife, subsistence uses, land reclamation, mining, and mineral expertise.
f.Advise and assist the United States insular areas on economic, social, and political matters.
g.Coordinate and provide liaison between Federal, State, and local agencies and Federally recognized Indian tribal governments on questions of radiological emergency preparedness and responses to incidents.

3. DOI References

  a. 910 DM 5 (Draft)-Interior Emergency Operations, Federal Radiological Emergency Response Plan.
b.296 DM 3 (Draft)-Interior Emergency Delegations, Radiological Emergencies.

4. DOI Specific Authorities

  a.Organic Act of 1879 providing for "surveys, investigations, and research covering the topography, geology, hydrology, and the mineral and water resources of the United States," 43 U.S.C. 31 (USGS).
b.Appropriations Act of 1894 providing for gaging streams and assessment of water supplies of the U.S., 28 Stat. 398 (USGS).
c. OMB Circular A-67 (1964) giving DOI (USGS) responsibility"* * * for the design and operation of the national network for acquiring data on the quantity and quality of surface ground waters * * *" (USGS).
d.The Reclamation Act of 1902, as amended, 43 U.S.C. 391, and project authorization acts (BuRec).
e. National Park Service Act of 1916, 16 U.S.C. 1 et seq., and park enabling acts (NPS).
f. The Snyder Act of 1921, as amended, 25 U.S.C. 13. DOI shall direct, supervise, and expend such monies appropriated by Congress for the benefit, care, and assistance of Indians throughout the United States for such purposes as the relief of distress, and conservation of health, for improvement of operation and maintenance of existing Indian irrigation and water supply systems * * * etc. (BIA).
g.National Wildlife Refuge System Administration Act of 1966, as amended, 16 U.S.C. 668dd, and refuge enabling acts (FWS).
h. Federal Land Policy and Management Act of 1976, 43 U.S.C. 1701 et seq. (BLM).
i.Endangered Species Act (1973), as amended, 16 U.S.C. 1531 et seq. Federal agencies may not jeopardize the continued existence of endangered or threatened species (FWS).
j.Migratory Bird Treaty Act (1918), as amended, 16 U.S.C. 703 et seq. Prohibits the taking of migratory birds without permits (FWS).
k.Anadromous Fish Conservation Act, as amended, 16 U.S.C. 757a et seq. Reestablishes anadromous fish habitat (FWS).
l.Marine Mammal Protection Act (1972), as amended, 16 U.S.C. 1361 et seq. Conserves marine mammals with management of certain species vested in DOI (FWS).


H. Department of Justice




[ Prev | Next |Top of file ]

1. Summary of Response Mission

The Department of Justice (DOJ) is the lead agency for coordinating the Federal response to acts of terrorism in the United States and U.S. territories. Within the DOJ, the Federal Bureau of Investigation (FBI) will manage the law enforcement aspect of the Federal response to such incidents. The FBI also is responsible for investigating all alleged or suspected criminal violations of the Atomic Energy Act of 1954, as amended.

2. Capabilities and Resources

The FBI will coordinate all law enforcement operations including intelligence gathering, hostage negotiations, and tactical operations.

3. DOJ References

  a.Memorandum of Understanding between DOJ, DOD, and DOE for Responding to Domestic Malevolent Nuclear Weapons Emergencies.
b.Federal Bureau of Investigation Nuclear Incident Response Plan.
c. Memorandum of Understanding between DOE and the FBI for Responding to Nuclear Threat Incidents.
d. Memorandum of Understanding between the FBI and the NRC Regarding Nuclear Threat Incidents Involving NRC-Licensed Facilities, Materials, or Activities.
e. Memorandum of Understanding between DOE, FBI, White House Military Office, and the U.S. Secret Service Regarding Nuclear Incidents Concerning the Office of the President and Vice President of the United States.
f.Joint Federal Bureau of Investigation, Department of Energy, and Department of Defense Agreement for Response to Improvised Nuclear Device Incidents.

4. DOJ Specific Authorities

  a. Atomic Energy Act of 1954, 42 U.S.C. 2011-2284.
b.18 U.S.C. 831 (Prohibited Transactions Involving Nuclear Materials).


I. Department of State




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The Department of State (DOS) is responsible for the conduct of relations between the U.S. Government and other governments and international organizations and for the protection of U.S. interests and citizens abroad.

In a radiological emergency outside the United States, DOS is responsible for coordinating U.S. Government actions concerning the event in the country where it occurs (including evacuation of U.S. citizens, if necessary) and internationally. Should the FRERP be invoked due to the need for domestic action, DOS will continue to hold this role within the FRPCC structure. Specifically, DOS will coordinate foreign information-gathering activities and, in particular, conduct all contacts with foreign governments except in cases where existing bilateral agreements permit direct agency-to-agency cooperation. In the latter situation, the U.S. agency will keep DOS fully informed of all communications.

In a domestic radiological emergency with potential international trans-boundary consequences, DOS will coordinate all contacts with foreign governments and agencies except where existing bilateral agreements provide for direct exchange of information. DOS is responsible for conveying the U.S. Government response to foreign offers of assistance.

2. Capabilities and Resources

The State Department maintains embassies, missions, interest sections (in countries where the United States does not have diplomatic relations), and consulates throughout the world. The State Department Operations Center is capable of secure, immediate, around-the-clock communications with diplomatic posts. The diplomatic personnel stationed at a post are knowledgeable of local factors important to clear and concise communication, and frequently speak the local language. The Ambassador is the President's personal representative to the host government, and his country team is responsible for coordinating official contacts between the U.S. Government and the host government or international organization.

3. DOS References

Task Force Manual for Crisis Management (rev. 11 January 1990).

4. DOS Specific Authorities

  a.Presidential Directive/NSC-27 (PD-27) of January 19, 1978.
b.22 U.S.C. 2656.
c.22 U.S.C. 2671(a)(92)(A).


J. Department of Transportation




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The Department of Transportation (DOT) Radiological Emergency Response Plan for Non-Defense Emergencies provides assistance to State and local governments when a radiological emergency adversely affects one or more transportation modes and the States or local jurisdictions requesting assistance have inadequate technical and logistical resources to meet the demands created by a radiological emergency.

2. Capabilities and Resources

DOT can assist Federal, State, and local governments with emergency transportation needs and contribute to the response by assisting with the control and protection of transportation near the area of the emergency. DOT has capabilities to do the following:

  a.Support State and local governments by identifying sources of civil transportation on request and when consistent with statutory responsibilities.
b.Coordinate the Federal civil transportation response in support of emergency transportation plans and actions with State and local governments. (This may include provision of Federally controlled transportation assets and the controlling of transportation routes to protect commercial transportation and to facilitate the movement of response resources to the scene.)
c. Provide Regional Emergency Transportation Coordinators and staff to assist State and local authorities in planning and response.
d. Provide technical advice and assistance on the transportation of radiological materials and the impact of the incident on the transportation system.
e.Provide exemptions from normal transportation hazardous materials regulations if public interest is best served by allowing shipments to be made in variance with the regulations. Most exemptions are issued following public notice procedures, but if emergency conditions exist, DOT can issue emergency exemptions by telephone.
f.Control airspace, including the imposition of Temporary Flight Restrictions and issuance of Notices to Airmen (NOTAMS), both to give priority to emergency flights and protect aircraft from contaminated airspace.
DOT is responsible for dealing with the International Atomic Energy Agency and foreign Competent Authorities on issues related to packaging and other standards for the international transport of radioactive materials. If a transport accident involves international shipments of radioactive materials, DOT will be the point of contact for working with the transportation authorities of the foreign country that offered the material for transport in the United States.

3. DOT References

  a.Department of Transportation Radiological Emergency Response Plan for Non-Defense Emergencies, August 1985.
b.DOT Order 1900.8, Department of Transportation Civil Emergency Preparedness Policies and Program(s).
c. DOT Order 1900.7D, Crisis Action Plan.
d.Transportation Annex (Emergency Support Function #1), Federal Response Plan.

4. DOT Specific Authorities

  a.49 U.S.C. 301.
b.44 CFR 351, Radiological Emergency Planning and Preparedness, 351.25, The Department of Transportation.


K. Department of Veterans Affairs




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The Department of Veterans Affairs (VA) can assist other Federal agencies, State and local governments, and individuals in an emergency by providing immediate and long-term medical care, including management of radiation trauma, as well as first aid, at its facilities or elsewhere. VA can make available repossessed VA mortgaged homes to be used for housing for affected individuals. VA can manage a system of disposing of the deceased. VA can provide medical, biological, radiological, and other technical guidance for response and recovery reactions. Generally, none of these actions will be taken unilaterally but at the request of a responsible senior Federal official and with appropriate external funding.

2. Capabilities and Resources

In addition to the capabilities listed above, VA:

  a.Operates almost 200 full-facility hospitals and outpatient clinics throughout the United States
b.Has almost 200,000 employees with broad medical, scientific, engineering and design, fiscal, and logistical capabilities
c.Manages the National Cemetery System in 38 States
d. May have a large inventory of repossessed homes (this inventory varies according to economic trends)
e. Is one of the Federal managers of the National Disaster Medical System
f.Is a participant in the VA/DOD contingency plan for Medical Backup in times of national emergency
g.Has the capability to manage the medical effects of radiation trauma using the VA's Medical Emergency Radiological Response Teams (MERRTs) and
h.Has a fully equipped emergency center with multi-media communications at the Emergency Medical Preparedness Office (EMPO).

3. VA References

MP-1, Part II, Chapter 13 (Emergency Preparedness Plan), March 20, 1985, as revised.

4. VA Specific Authorities

  a.The Robert T. Stafford Disaster Relief and Emergency Assistance Act, as amended, Title VI, 42 U.S.C. 5195 et seq.
b.National Security Decision Directive Number 47 (NSDD-47), July 22, 1982, Emergency Mobilization Preparedness.
c.National Security Decision Directive Number 97 (NSDD-97), June 13, 1982, National Security Telecommunications Policy.
d.National Plan of Action for Emergency Mobilization Preparedness.
e. Veterans Administration and Department of Defense Health Resources Sharing and Emergency Operations Act, 38 U.S.C. 5001 et seq.
f.E.O. 11490, Assignment of Preparedness Functions to Federal Departments and Agencies, October 28, 1969, as amended, 3 CFR, 1966-1970 Comp., p. 820.
g. E.O. 12656, Assignment of Emergency Preparedness Responsibilities, November 18, 1988, 3 CFR, 1988 Comp., p. 585.
h.E.O. 12657, Federal Emergency Management Agency Assistance, Emergency Preparedness Planning at Commercial Nuclear Power Plants, November 23, 1988, 3 CFR, 1988 Comp., p. 611.


L. Environmental Protection Agency




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The Environmental Protection Agency (EPA) assists Federal, State, and local governments during radiological emergencies by providing environmental and water supply monitoring, recommending protective actions, and assessing the consequences of radioactivity releases to the environment. These services may be provided at the request of the Federal or State Government, or EPA may respond to an emergency unilaterally in order to fulfill its statutory responsibility. EPA actively participates with USDA and HHS on the Advisory Team when convened.

2. Capabilities and Resources

EPA can provide personnel, resources, and equipment (including mobile monitoring laboratories) from its facilities in Montgomery, AL, and Las Vegas, NV, and technical support from Headquarters and regional offices. EPA has capability to do the following:

  a.Direct environmental monitoring activities and assess the environmental consequences of radioactivity releases.
b.Develop Protective Action Guides.
c. Recommend protective actions and other radiation protection measures.
d.Recommend acceptable emergency levels of radioactivity and radiation in the environment.
e.Prepare health and safety advice and information for the public.
f. Assist in the preparation of long-term monitoring and area restoration plans and recommend clean-up criteria.
g. Estimate effects of radioactive releases on human health and environment.
h.Provide nationwide environmental monitoring data from the Environmental Radiation Ambient Monitoring Systems for assessing the national impact of the emergency.

3. EPA References

  a.U.S. Environmental Protection Agency Radiological Emergency Response Plan, Office of Radiation Programs, December 1986.
b. Letter of Agreement between DOE and EPA for Notification of Accidental Radioactivity Releases into the Environment from DOE Facilities, January 8, 1978.
c.Letter of Agreement between NRC and EPA for Notification of Accidental Radioactivity Releases to the Environment from NRC Licensed Facilities, July 28, 1982.
d. Manual of Protective Action Guides and Protective Actions for Nuclear Incidents, Office of Radiation Programs, January 1990.
e.Memorandum of Understanding Between the Federal Emergency Management Agency and the Environmental Protection Agency Concerning the Use of High Frequency Radio for Radiological Emergency Response 1981, Office of Radiation Programs, EPA.

4. EPA Specific Authorities

  a.Atomic Energy Act of 1954, as amended, 42 U.S.C. 2011 et seq. (1970), and Reorganization Plan #3 of 1970.
b.Public Health Service Act, as amended, 42 U.S.C. 241 et seq. (1970).
c.Safe Drinking Water Act, as amended, 42 U.S.C. 300f et seq. (1974).
d.Clean Air Act, as amended, 42 U.S.C. 7401 et seq. (1977).
e. Comprehensive Environmental Response, Compensation, and Liability Act of 1980 (SUPERFUND), 42 U.S.C. 9601 et seq., as amended by the Superfund Amendments and Reauthorization Act of 1986 (Public Law 99-499) (1986).
f.E.O. 12656, Assignment of Emergency Preparedness Responsibilities, November 18, 1988, 3 CFR, 1988 Comp., p. 585.


M. Federal Emergency Management Agency




[ Prev | Next |Top of file  ]

1. Summary of Response Mission

The Federal Emergency Management Agency (FEMA) is responsible for coordinating offsite Federal response activities and Federal assistance to State and local governments for functions other than radiological monitoring and assessment. FEMA's coordination role is to promote an effective and efficient response by Federal agencies at both the national level and at the scene of the emergency. FEMA coordinates the activities of Federal, State, and local agencies at the national level through the use of its Emergency Support Team and at the scene of the emergency with its Emergency Response Team.

2. Capabilities and Resources

FEMA will provide personnel who are experienced in disaster assistance to establish and operate the DFO public information officials to coordinate public information activities personnel to coordinate reporting to the White House and liaison with the Congress and personnel experienced in information support for the Federal response. FEMA personnel are familiar with the capabilities of other Federal agencies and can aid the States and other Federal agencies in obtaining the assistance they need. FEMA will:

  a. Coordinate assistance to State and local governments among the Federal agencies
b.Coordinate Federal agency response activities, except those pertaining to the FRMAC, and coordinate these with the activities of the LFA
c. Work with the LFA to coordinate the dissemination of public information concerning Federal emergency response activities. Promote the coordination of public information releases with State and local governments, appropriate Federal agencies, and appropriate private sector authorities and
d. Help obtain logistical support for Federal agencies.

3. FEMA References

  a. Federal Response Plan, April, 1992, and subsequent changes.
b. Emergency Response Team Plans for FEMA Regions I, II, III, IV, V, VI, VII, VIII, IX, and X, various dates.
c.NRC/FEMA Operational Response Procedures for Response to a Commercial Nuclear Reactor Accident (NUREG-0981/FEMA-51), Rev. 1, February 1985.
d.Memorandum of Understanding for Incident Response between the Federal Emergency Management Agency and the Nuclear Regulatory Commission, October 22, 1980.
e. Department of Defense, Department of Energy, Federal Emergency Management Agency Memorandum of Agreement for Response to Nuclear Weapon Accidents and Nuclear Weapon Significant Incidents, 1983.
f.Memorandum of Understanding, GSA and FEMA, February 1989.

4. FEMA Specific Authorities

  a.The Robert T. Stafford Disaster Relief and Emergency Assistance Act, P.L. 93-288, as amended, 42 U.S.C. 5121 et seq.
b.E.O. 12148 of July 20, 1979, Federal Emergency Management, 3 CFR, 1979 Comp., p. 412.
c. E.O. 12241 of September 29, 1980, National Contingency Plan, 3 CFR, 1980 Comp., p. 282.
d. E.O. 12472 of April 3, 1984, Assignment of National Security and Emergency Preparedness Telecommunications Functions, 3 CFR, 1984 Comp., p. 193.
e.E.O. 12656 of November 18, 1988, Assignment of Emergency Preparedness Responsibilities, 3 CFR, 1988 Comp., p. 585.
f. E.O. 12657 of November 18, 1988, Federal Emergency Management Agency Assistance in Emergency Preparedness Planning at Commercial Nuclear Power Plants, 3 CFR, 1988 Comp., p. 611.
g.44 CFR 351, Radiological Emergency Planning and Preparedness.
h.44 CFR 352, Commercial Nuclear Power Plants: Emergency Preparedness Planning.


N. General Services Administration




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The General Services Administration (GSA) is responsible to direct, coordinate, and provide logistical support of other Federal agencies. GSA, in accordance with the National Plan for Telecommunications Support During Non-Wartime Emergencies, manages the provision and operations of telecommunications and automated data processing services. A GSA employee, the Federal Emergency Communications Coordinator (FECC), in accordance with appropriate regulations and plans, is appointed to perform communications management functions.

2. Capabilities and Resources

GSA provides acquisition and procurement of floor space, telecommunications and automated data processing services, transportation, supplies, equipment, material it also provides specified logistical services that exceed the capabilities of other Federal agencies. GSA also provides contracted advisory and support services to Federal agencies and provides security services on Federal property leased by or under the control of GSA. GSA will identify a Regional Emergency Communications Planner (RECP) and FECC, when required, for each of the 10 standard Federal regions. GSA will authorize the RECP to provide technical support and to accept guidance from the FEMA Regional Director during the pre-deployment phase of a telecommunications emergency. The GSA Regional Emergency Coordinator will coordinate all the services provided. Upon request of the Senior FEMA Official (SFO) through the Regional Emergency Coordinator, GSA will dispatch the FECC to the disaster site to expedite the provision of the telecommunications services.

3. Funding

GSA is not funded by Congressional appropriations. All requests for support are funded by the requestor in accordance with normal procedures or existing agreements.

4. GSA References

  a.Memorandum of Understanding between GSA and FEMA Pertaining to Disaster Assistance Programs, Superfund Relocation Program, and Federal Radiological Emergency Response Plan Programs, February 2, 1989.
b.GSA Orders in the 2400 Series (Emergency Management).
c.National Communications System Plan for Telecommunications Support to Non-Wartime Emergencies, January 1992.
d.National Telecommunications System Telecommunication Procedures Manuals.

5. GSA Specific Authorities

  a. The Federal Property and Administrative Services Act of 1947, as amended, 40 U.S.C. 471 et seq.
b.The Communications Act of 1934, 47 U.S.C. 390 et seq.
c.The Defense Production Act of 1950, as amended, 50 App. 2061 et seq.
d.E.O. 12472 of April 3, 1984, Assignment of National Security and Emergency Preparedness Telecommunications Functions, 3 CFR, 1984 Comp., p. 193.
e.Federal Acquisition Regulations, 48 CFR 1.
f. The General Services Administration Acquisition Regulations, 41 CFR 5.
g. Federal Property Management Regulations, 41 CFR 101.
h.Federal Travel Regulations, 41 CFR 301-304.


O. National Aeronautics and Space Administration




[ Prev | Next | Top of file ]

1. Summary of Response Mission

The role of the National Aeronautics and Space Administration (NASA) in a Federal response will depend on the circumstances of the emergency. NASA will be the LFA and will coordinate the initial response and support of other agencies as agreed to in specific interagency agreements when the launch vehicle or payload carrying the nuclear source is a NASA responsibility.

2. Capabilities and Resources

NASA has launch facilities and the ability to provide launch vehicle and space craft telemetry data through its tracking and data network. NASA also has the capability to provide limited radiological monitoring and emergency response from its field centers in Florida, Alabama, Maryland, Virginia, Ohio, Texas, and California.

3. NASA References

  a.KHB 1860.1B KSC Ionizing Radiation Protection Program.
b.Memorandum of Understanding between the Department of Energy and the National Aeronautics and Space Administration concerning Radioisotope Power Systems for Space Missions, dated July 26, 1991, as supplemented.

4. NASA Specific Authorities

  a. National Aeronautics and Space Act of 1958, as amended, 42 U.S.C. 2451 et seq.
b. NASA Policy Directives (NPDs), as applicable.


P. National Communications System




[ Prev | Next | Top of file  ]

1. Summary of Response Mission

Under the National Plan for Telecommunications Support in Non-Wartime Emergencies, the Manager, National Communications System (NCS), is responsible for adequate telecommunications support to the Federal response and recovery operations. The Manager, NCS, will identify, upon the request of the Senior FEMA Official, a Communications Resource Manager from the NCS/National Coordinating Center (NCC) staff when any of the following conditions exist: (1) when local telecommunications vendors are unable to satisfy all telecommunications service requirements (2) when conflicts between multiple Federal Emergency Communications Coordinators occur or (3) if the allocation of available resources cannot be fully accomplished at the field level. The Manager, NCC, will monitor all extraordinary situations to determine that adequate national security emergency preparedness telecommunications services are being provided to support the Federal response and recovery operations.

2. Capabilities and Resources

NCS can provide the expertise and authority to coordinate the communications for the Federal response and to assist appropriate State agencies in meeting their communications requirements.

3. NCS References

  a. National Plan for Telecommunications Support in Non-Wartime Emergencies, September 1987.
b.Memorandum of Understanding, GSA and FEMA, February 1989.
c.E.O. 12046 (relates to the transfer of telecommunications functions), the White House, March 27, 1978, 3 CFR, 1978 comp., p. 158.

4. NCS Specific Authorities

  a.E.O. 12472, Assignment of National Security and Emergency Preparedness Telecommunications Functions, April 3, 1984, 3 CFR, 1984 Comp., p. 193.
b.E.O. 11490, October 30, 1969, 3 CFR, 1966-1970 Comp., p. 820.
c. E.O. 12046, March 27, 1978, 3 CFR, 1978 Comp., p. 158.
d.White House Memorandum, National Security and Emergency Preparedness: Telecommunications and Management and Coordination Responsibilities, July 5, 1978.


Q. Nuclear Regulatory Commission




[ Prev | Top of file  ]

1. Summary of Response Mission

The U.S. Nuclear Regulatory Commission (NRC) regulates the use of byproduct, source, and special nuclear material, including activities at commercial and research nuclear facilities. If an incident involving NRC- regulated activities poses a threat to the public health or safety or environmental quality, the NRC will be the LFA. In such an incident, the NRC is responsible for monitoring the activities of the licensee to ensure that appropriate actions are being taken to mitigate the consequences of the incident and to ensure that appropriate protective action recommendations are being made to offsite authorities in a timely manner. In addition, the NRC will support its licensees and offsite authorities, including confirming the licensee's recommendations to offsite authorities.

Consistent with NRC's agreement to participate in FRMAC, the NRC may also be called upon to assist in Federal radiological monitoring and assessment activities during incidents for which it is not the LFA.

2. Capabilities and Resources

  a.The NRC has trained personnel who can assess the nature and extent of the radiological emergency and its potential offsite effects on public health and safety and provide advice, when requested, to the State and local agencies with jurisdiction based on this assessment.
b. The NRC can assess the facility operator's recommendations and, if needed, develop Federal recommendations on protective actions for State and local governments with jurisdiction that consider, as required, all substantive views of other Federal agencies.
c.The NRC has a system of thermoluminescent dosimeters (TLD) established around every commercial nuclear power reactor in the country. The NRC can retrieve and exchange these TLDs promptly and obtain immediate readings onscene.

3. NRC References

  a.NRC Incident Response Plan Revision 2 (NUREG-0728), NRC Office for Analysis and Evaluation of Operational Data, June 1987.
b. Regions I through V Supplements to NUREG-0845, 1990.
c. NRC/FEMA Operational Response Procedures for Response to a Commercial Nuclear Reactor Accident, (NUREG-0981 FEMA- 51), Rev. 1, February 1985.
d.Operational Response Procedures Developed between NRC, EPA, HHS, DOE, and USDA, January 1991.
e. Memorandum of Understanding for Incident Response between the Federal Emergency Management Agency and the Nuclear Regulatory Commission, October 22, 1980.
f.Memorandum of Understanding Between the FBI and the NRC Regarding Nuclear Threat Incidents Involving NRC-Licensed Facilities, Materials, and Activities, March 13, 1991.
g. NUREG/BR-0150, "Response Technical Manual," November 1993.
h.NUREG-1442 (Rev. 1)/FEMA-REP-17 (Rev. 1), "Emergency Response Resources Guide," July 1992.
i.NUREG-1467, "Federal Guide for a Radiological Response: Supporting the Nuclear Regulatory Commission During the Initial Hours of a Serious Accident," November 1993.
j.NUREG-1471, "U.S. NRC Concept of Operations," February 1994.
k.NUREG-1210, "Pilot Program NRC Severe Reactor Accident Incident Response Training Manual," February 1987.

4. NRC Specific Authorities

  a.Atomic Energy Act of 1954, as amended, 42 U.S.C. 2011- 2284.
b.Energy Reorganization Act of 1974, 42 U.S.C. 5841 et seq.
c. 10 CFR Parts 0 to 199.

[FR Doc. 96-11313 Filed 5-7-96 8:45 am] BILLING CODE 6718-02-P

The Contents entry for this article reads as follows:

Federal radiological emergency response plan, 20944

Notes:


[ Top of file  ]

1. For NRC reactor licensees, the JOC is within the Emergency Operations Facility (EOF). The EOF would be staffed in accordance with the owner/operator's site-specific Emergency Plan.

2. For NRC licensees, the Federal JIC is within the JIC established by the owner/operator.
